HF2A2001

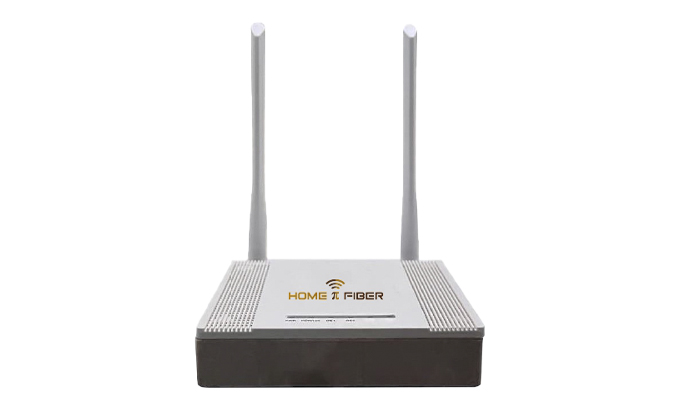

The HF2AV2001 is an HOMEFIBER AC EasyMesh supported WiFi XPON ONUs designed for FTTx applications. The family of ONUs support both GPON and GEPON features on the same device. It supports 2.5G download speed and 1.25G upload speed. The family of ONUs also support the latest Mesh technology, a Mesh kit at its max capacity can cover an entire area of 1500 Square meters with high density Wi-Fi signals.

Download Details

Main Characters

  • Support both ITU-T G.984.x GPON and IEEE802.3ah GEPON standard,
  • Compatible with Syrotech, Netlink, Genexis, Nokia GEPON and GPON OLTs
  • IEEE802.11ac 867Mbps + IEEE802.11n 300Mbps Wi-Fi Router
  • EasyMesh controller, support a 1500 square meters of WiFi coverage with multiple Mesh agents
  • 1* SC/APC or SC/UPC GPON / GEPON WAN port, 2.5G download and 1.25G upload
  • 4 * Gigabit Ethernet LAN ports max, wire-speed data transmission
  • Max 1*FXS port for high quality Voice over IP deployments.
  • AES 128-bit encrypted and key switching, enhancing transmission security
  • Layer 2 Switching, support 802.1Q VLAN, 802.1P QoS, Bandwidth Control, Spanning Tree, etc
  • Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
  • Port Binding, different LAN ports can be assigned with different WAN services
  • Max 1:64 Fiber ratio for GEPON, max transmission distance can reach 20km
  • Support FEC (Forward Error Correction), ensures high reliable and precise data transmission
  • Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage.
  • Support IPv4 and IPv6, highly applicable in both IP type based networks.
  • Support Mesh IEEE802.11 k/v/r, IEEE802.11sprotocols
  • Support 253 on LAN cable ( DHCP Limit) but only 64 in each wifi ( 64 for 2.4G + 64 for 5G).



    • Technical Parameters

    GPON Parameters

    ITU-T G.984.x GPON,built-in with a -28dBm Optical BOSA , SC/UPC or SC/APC connector optional 1310nm upstream & 1490nm downstream Support G.984.1 General Characteristics Support G.984.2 Physical Media Dependent (PMD) layer Specification Support G.984.3 Transmission convergence layer Specification GPON transceiver transmitting power: 0.5-5dbm, Optical receiving sensitivity: -28dBm Transmission wavelength: Upstream: 1310nm / Downstream: 1490nm Support 1:128 Fiber Ratio at 20km transmission distance. Fiber Transmission cable: G.652 Single mode optical fiber cable Configurable AES decryption on downstream payload. Configurable FEC on both upstream and downstream payloads. Multi-Application Processor queues for dedicated connections for in-band. Enhanced GPON debug and diagnostic functions. Support up to 40 Transmission Container (T-Cons) Support 256 bidirectional GEMport IDs Support NSR/SR Dynamic Bandwidth Allocation (DBA) Support Forward Error Correction (FEC), Support Dying Gasp Maximum 2.5Gbps Downlink/1.25 Gbps Uplink Support Dying Gasp
